Integral Blind Sealed Units

Integral blinds permanently sealed between glass. a full Venetian colour range, 8 control systems including motorised Smart. Child-safe, dust-free, maintenance-free.

Integral Blind SystemColour Range8 SystemsCordlessMotorised SmartChild Safe10-15 Days

Most Popular

SL20-22SV Cordless Venetian, White, in 28mm unit (4-20-4) Low-E argon warm edge. Child-safe, dust-free. 10-15 working day lead time.

Product Overview

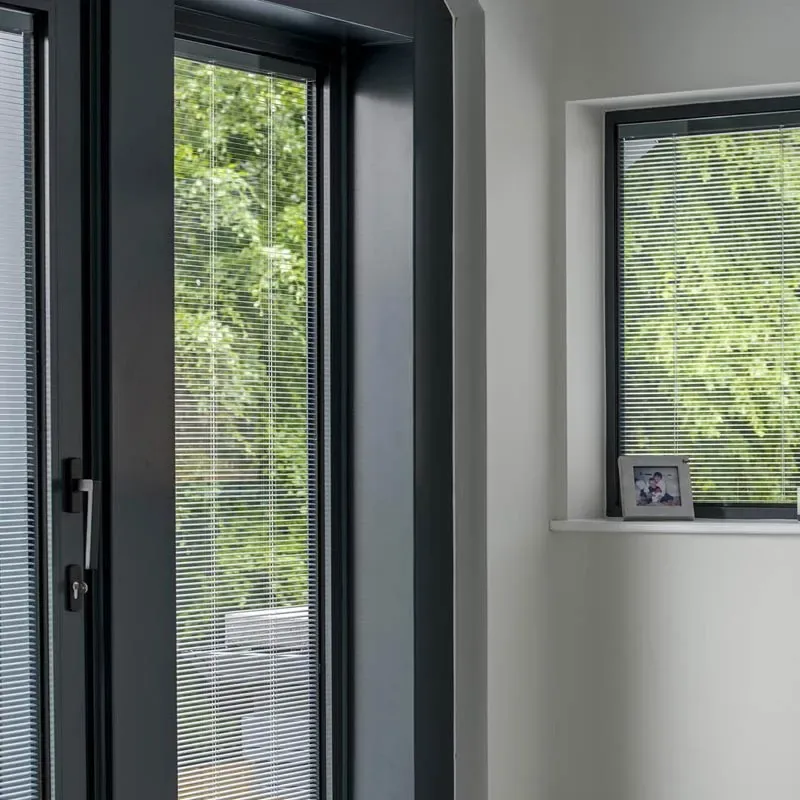

Integral Blinds — Sealed Between Glass

CSU Ltd supplies sealed units with integral blinds — Venetian, pleated or Wave blinds permanently sealed within the cavity of a double glazed unit. Because the blind is sealed inside the glass cavity, it never needs cleaning, cannot be damaged, and is completely child-safe with no hanging cords. Warm edge spacers come as standard; argon fill is an optional upgrade.

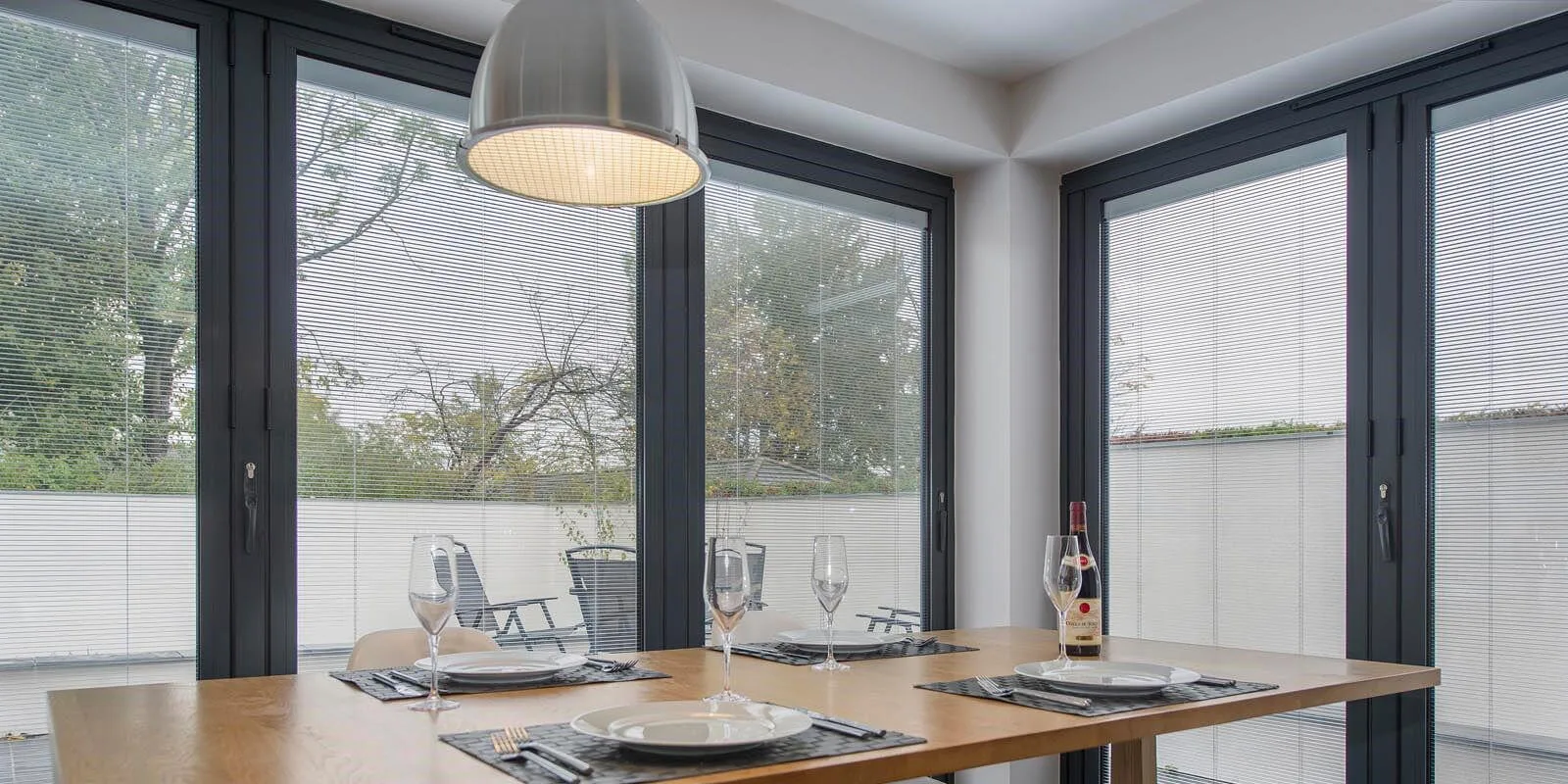

Anthracite bifold doors with silver integral venetian blinds half-lowered inside the sealed glass units — Integral venetians in anthracite bifold doors — light control across the full opening

Integral Blinds

Sealed Behind The Glass

Raised 0% · Tilted open

Drag the slider or use the tilt buttons — every control shown here works by magnetic coupling through the glass. The seal is never broken. Illustrative rendering.

Integral Blind Systems — Complete Range

System	Type	Slat/Fabric	Cavity	Control	Key Feature

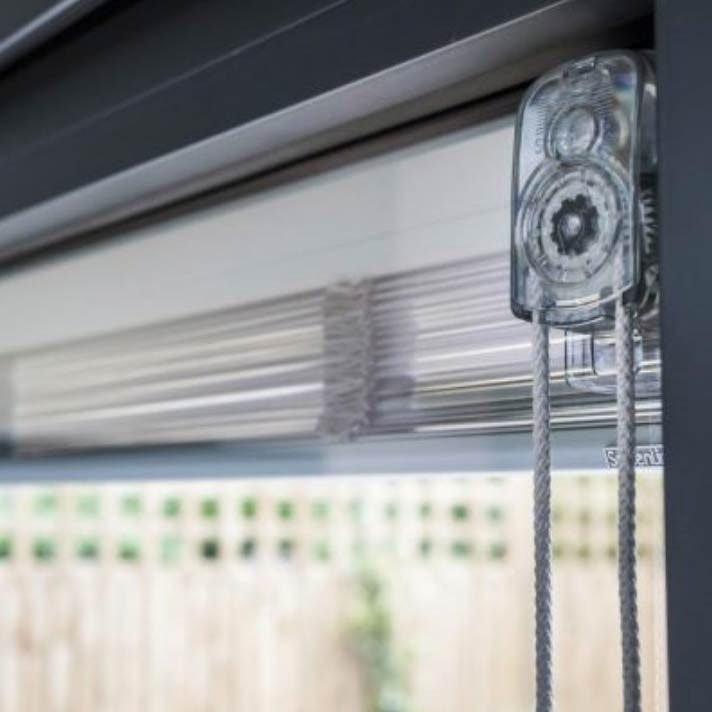

SL20-22C	Venetian	12mm alu	20mm	Continuous cord	Standard corded. Most popular.
SL20-22SV	Venetian	12mm alu	20mm	Magnetic slider	Cordless child-safe. ★ BEST SELLER
SL20-22SV+	Venetian	12mm alu	20mm	Symmetrical slider	Identical look both sides.

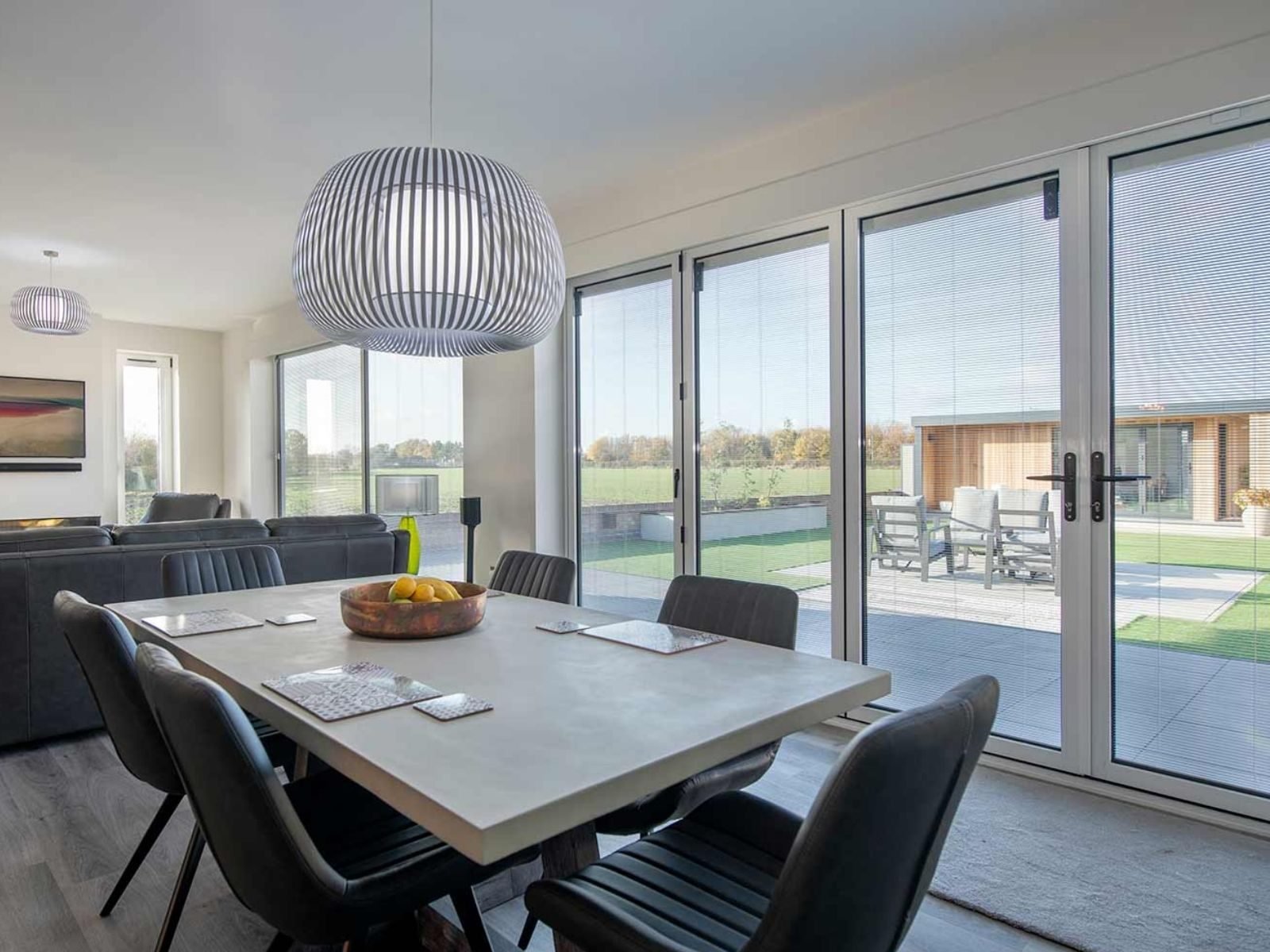

SL20-22W Smart	Venetian	12mm alu	20mm	Battery + solar motor	Remote control. No wiring.
Pleated Dim-Out	Fabric	Full width	20mm	Cord / slider	Light-reducing white fabric.
Pleated Blackout	Fabric	Full width	20mm	Cord / slider	100% light blocking.
Wave	Film	Full width	20mm	Motorised	Unique wave geometry look.

Integral Blinds

Product Visuals

Venetian — White Lowered & Tilted Full privacy with adjustable daylight — dust never touches the slats.

Venetian — Silver Half-Raised Raise for the outlook, lower for privacy — same sealed pane.

Pleated — Cream Partially Raised Soft fabric light control — no slats, nothing to dust.

Illustrative renderings — every system shown is sealed inside the glass cavity, operated without penetrating the seal.

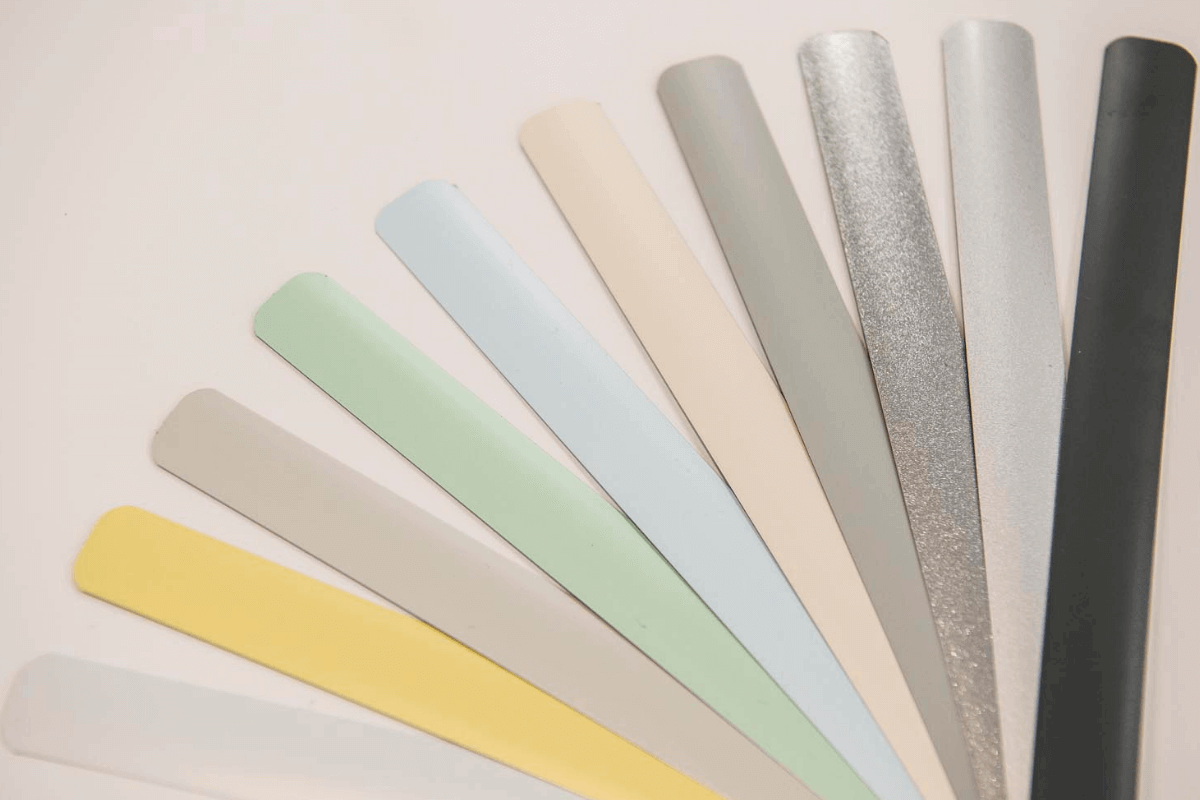

Venetian Blind Colour Palette

All colours available for the Venetian slat system:

Venetian Blind Colours

Colour Palette

Tap or hover a swatch to enlarge. Dual colour shows white on the room-facing side and grey on the exterior-facing side of each slat. Additional colours available on request.

Glass Options for Integral Blind Units

Configuration	Thickness	U-Value	System	Application
★ 4-20-4 Low-E Argon	28mm	0.9	All systems	Standard — most popular
6.8L-20-4 Low-E	30.8mm	1.0	All systems	Security (Part Q)
T6-20-T4 Low-E	30mm	0.9	All systems	Safety locations

How Integral Blinds Work

The blind mechanism uses a magnetic coupling system. An internal drive inside the sealed cavity connects to an external control device (cord winder, magnetic slider or motor) through the glass via magnets — without penetrating the hermetic seal. This maintains the unit’s gas-tight integrity while allowing full blind control. Venetian blinds can be raised, lowered and tilted to any angle. Pleated blinds raise and lower. The Smart system uses a rechargeable battery with solar panel — no wiring needed.

Integral Blinds

Magnetic Coupling — Control Through Glass, Seal Never Broken

The external control and the internal blind carriage are linked by magnets through the sealed glass — the cavity stays gas-tight while the blind is fully adjustable, raised, lowered or tilted.

Applications

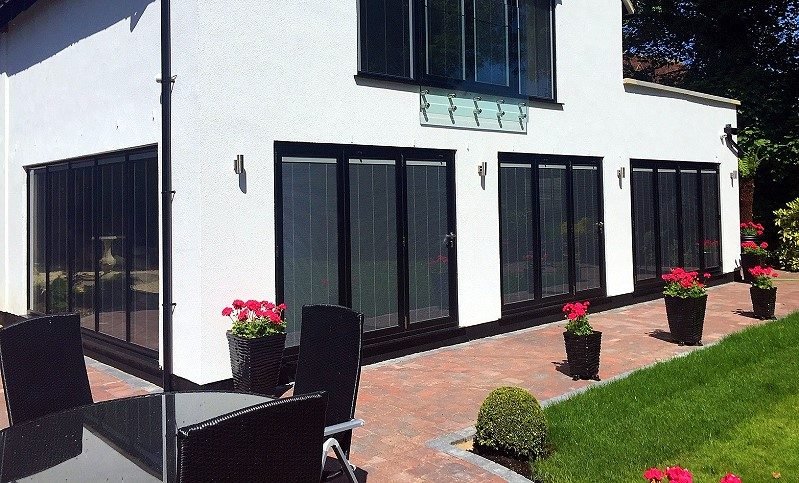

Bifold and patio doors: The #1 application. Privacy and shade without curtains interfering with panels.
French doors: No obstruction when opening/closing.
Bedrooms: Pleated blackout for 100% light blocking.
Bathrooms: Privacy at the touch of a slider.
Conservatories: Solar control without dust-collecting traditional blinds.
Healthcare: Hygienic, dust-free, cord-free patient privacy.
Schools: Child-safe, indestructible — sealed inside glass.

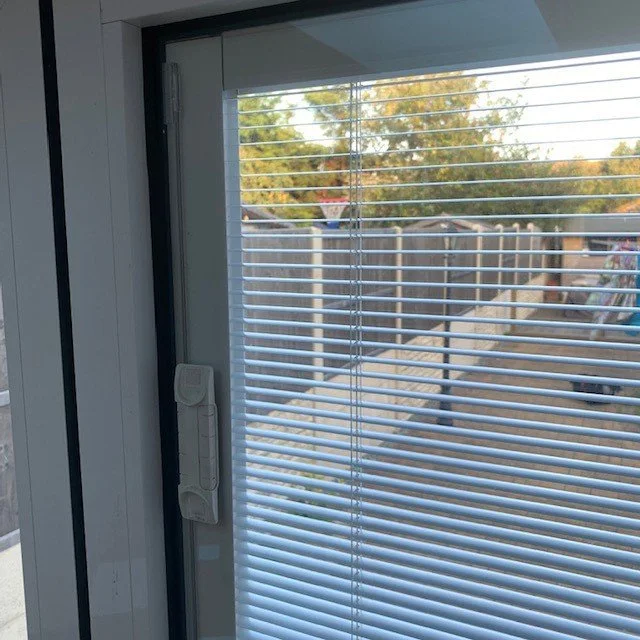

White integral venetian blind inside a sealed glass unit with magnetic slider control on the frame — Installed unit — slats sealed inside the cavity, magnetic slider on the frame

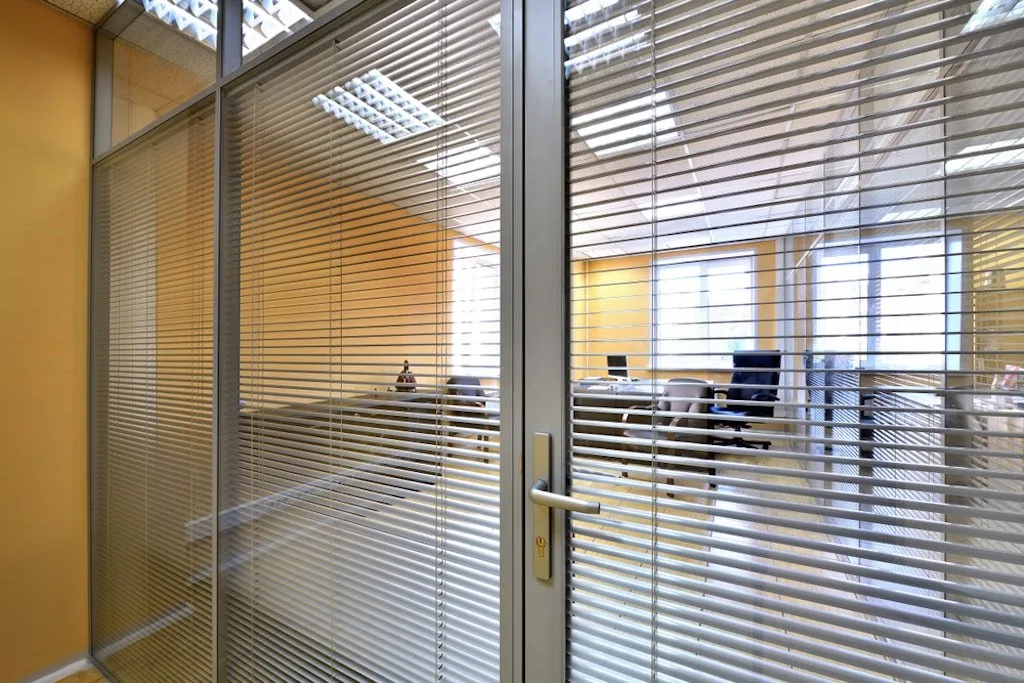

Venetian blinds sealed between the glass panes of aluminium-framed office partition doors — Aluminium office doors with integral venetians — privacy on demand

Specifications

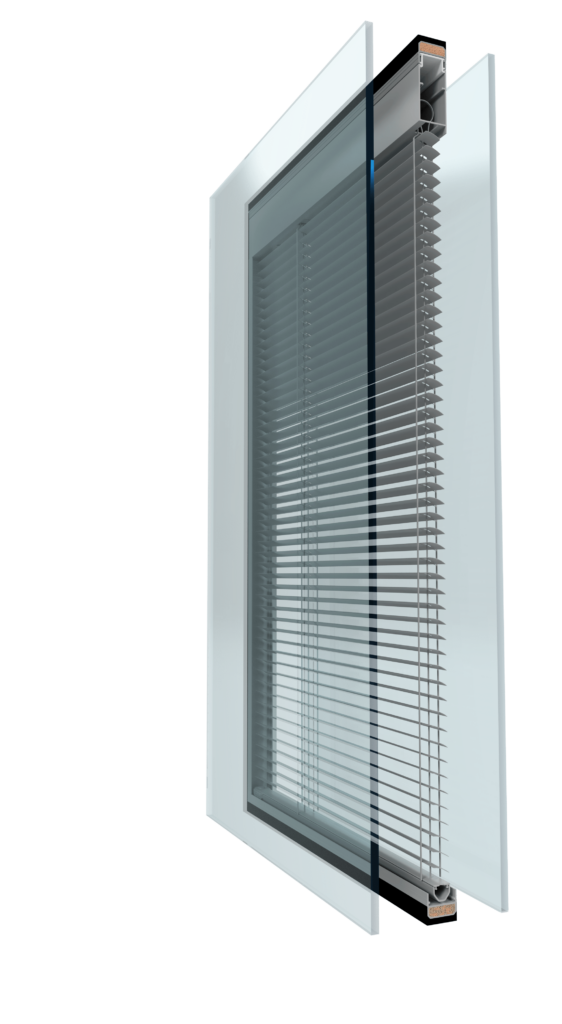

Cross-section of an integral blind sealed unit

Venetian Slats

Aluminium, powder-coated, 12mm.

Min Size

300 × 300mm

Max Width

2600mm (wider: multiple blinds side by side)

Child Safety

All systems child-safe. Cordless options have zero external cords.

Warranty

5-year blind + unit. 2-year external components.

Lead Time

10-15 working days from order confirmation.

FAQ — Integral Blinds

The blind is permanently sealed inside the unit. Faults are extremely rare; if one does occur, the entire sealed unit is replaced under warranty.

No. The slats are fully enclosed in the sealed cavity and cannot rattle or vibrate. The magnetic control system operates silently.

6-12 months with normal use. The integrated solar panel recharges the battery automatically in daylight, so in most installations the battery essentially lasts indefinitely.

Marginally — the slats within the cavity slightly reduce gas fill effectiveness. However, when closed, the blinds create an additional thermal barrier that can actually improve overall insulation.
